Product Overview
The Avlite FTS 800(L) LED Voltage Driven Airport Lighting is a voltage-driven unidirectional LED white airport approach light designed for runway alignment, threshold marking, and approach lighting systems. It conforms to FAA L-849 Styles A and E airport lighting requirements.
This LED voltage driven airport lighting system is suitable for simple REIL installations or complete approach light systems, including MALSR, MALSF, SSALSR, and ALSF I and II. The flashhead and power converter components may be mounted separately when needed to meet terrain and installation requirements.
The FTS 800(L) is compatible with air-to-ground radio controllers and ground-to-ground remote systems. Its modular design supports easy maintenance, while long-lasting LED flashheads require a low operational voltage for dependable airport approach lighting performance.
The system can be configured for 1-step or 3-step intensity operation and is available with visible or visible/IR output configurations. It supports solar, generator, battery, or AC power options depending on the installation requirements.
Key Features
| Lighting Type | Voltage-driven unidirectional LED white airport approach light. |
| Applications | Suitable for REIL, MALSR, MALSF, SSALSR, and ALSF I and II approach lighting systems. |
| LED Flashheads | Long-lasting LED flashheads require a low operational voltage. |
| Intensity Control | Configurable for 1-step or 3-step intensity operation. |
| Remote Compatibility | Compatible with air-to-ground radio controllers and ground-to-ground remote systems. |
| Maintenance | Modular design supports easier maintenance. |

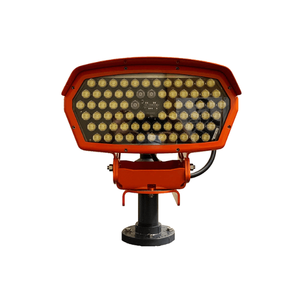

Flashhead Specifications
| Flashhead | FH 800 |
| Flash Rate | 60 or 120 fpm. |
| Coverage | 30° minimum horizontal coverage. |
| Beam | 10° vertical beam. |
| Elevation Angle | Adjustable elevation angle from 0° to 15°. |
Voltage-Driven Power Converter — PC 800(L)
| Single FH with Controller | High: 35.5 W, Medium: 10 W, Low: 8 W. |
| Two FH with Controller | High: 64.5 W, Medium: 16 W, Low: 12 W. |
| Voltage | 120–240 VAC, 50 and 60 Hz. |
| Amperage | 171 VA at 120 VAC; 193 VA at 99 VAC. |
| Interlocks | Yes. |
| Internal Surge Protection | Yes. |
| Construction | Powder-coated aluminum beacon and power converter with stainless steel hardware. |
| Temperature | -40°C to +55°C / -40°F to +131°F. |
| Protection Rating | IP65, NEMA 4. |
Weight and Dimensions

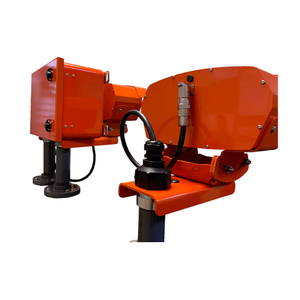

| FTS 812(L) Co-Mounted Assembly | Width: 18.6 in. / 473 mm; Height: 19 in. min–32.5 in. max / 483 mm min–826 mm max; Depth: 21.5 in. / 546 mm; Weight: 37.9 lbs. / 17.2 kg. |
| FTS 812(L) Remote Mount Assembly | Width: 7.9 in. / 201 mm; Height: 19 in. min–32.5 in. max / 483 mm min–826 mm max; Depth: 16.5 in. / 419 mm; Weight: 18.8 lbs. / 8.5 kg. |

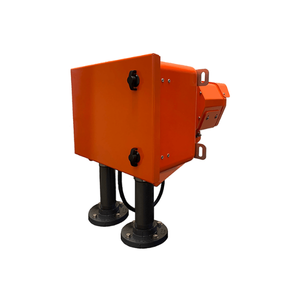

| PC 800(L) Power Converter | Width: 12.8 in. / 325 mm; Height: 18.6 in. / 473 mm; Depth: 7.7 in. / 196 mm; Weight: 17.1 lbs. / 7.8 kg. |
Configuration
| Mounting | Permanent or portable. |
| Output | Visible or visible/IR. |
| Power | Solar, generator, battery, or AC. |
| Control | Wired. |
Lighting Intensities
| Style | High Intensity | Medium Intensity | Low Intensity |
|---|---|---|---|
| A | 15,000 | — | — |
| E | 15,000 | 1,500 | 300 |
Compliance
| FAA AC 150/5345-51B L-849 Style A high-intensity 1-step and Style E 3-step. |
| ICAO Annex 14 Volume 1 runway threshold identification lights. |
| Transport Canada TP 312 5th Edition. |
Built for LED airport approach lighting applications, the Avlite FTS 800(L) provides a modular voltage driven airport lighting solution for REIL and complete approach lighting systems requiring FAA, ICAO, and Transport Canada compliance.
