Product Overview

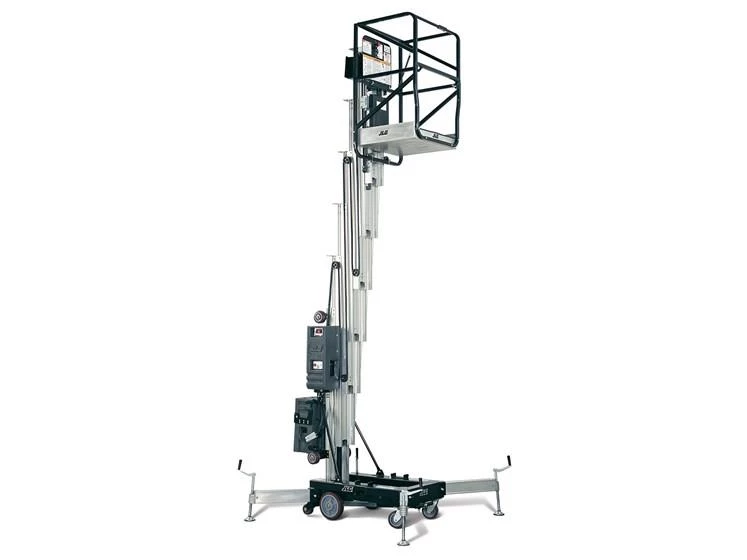

The 38AM-DC AccessMaster push-around vertical mast lift provides the highest reach in this AM Series group for overhead maintenance, institutional, commercial and industrial work. The compact push-around base, interlocked outriggers and battery-powered mast provide portable access up to a 44 ft working height while remaining narrow enough for many interior travel paths.
Product Information
| Product Type | Push-Around Vertical Mast Lift |
| Brand | JLG |
| Model | 38AM-DC |
| Manufacturer Item Number | AD690023 |
| Series | AccessMaster AM Series |
| Primary Use | Indoor overhead maintenance, repair and inventory applications |
Key Features
- 44 ft maximum working height for high interior maintenance and installation work.
- 300 lb platform capacity supports one operator with tools.
- Six-wheel push-around chassis supports movement through congested facilities.
- Interlocked outriggers provide a wide, stable footprint for elevated operation.
- 12V DC battery system with automatic charging supports routine facility use.
- Tilt-back capability helps reduce transport height when moving the machine between work areas.
Applications
| High-Bay Maintenance | Lighting, ceilings, utilities and overhead building service. |
| Institutional Facilities | Auditoriums, arenas, schools and public-building maintenance. |
| Warehousing | High-rack and overhead utility access. |
| Industrial | Plant maintenance and elevated service in space-constrained work areas. |
Specifications
| Working Height | 44 ft |
| Platform Height | 38 ft |
| Maximum Platform Capacity | 300 lb |
| Platform Size | 26 × 26 in |
| Machine Length | 57.5 in |
| Machine Width | 29 in |
| Stowed Machine Height – Standard | 104.3 in |
| Stowed Machine Height – Tilt-Back | 77 in |
| Machine Weight – DC | 1,395 lb |
| Outrigger Footprint | 86 × 84 in |
| Ground Entry Height | 19 in |
| Power | 12V DC, AGM battery |
| Front Casters | 6 × 2 in |
| Rear Wheels | 10 × 2 in |
| Mobility | Manual push-around |
Download Specs / Sheets
Product Summary
The 38AM-DC is a compact push-around vertical mast lift designed to provide portable, stable access for maintenance and overhead work on firm, level surfaces.
Explore additional aerial lift and work platform solutions from JLG.
