Product Overview

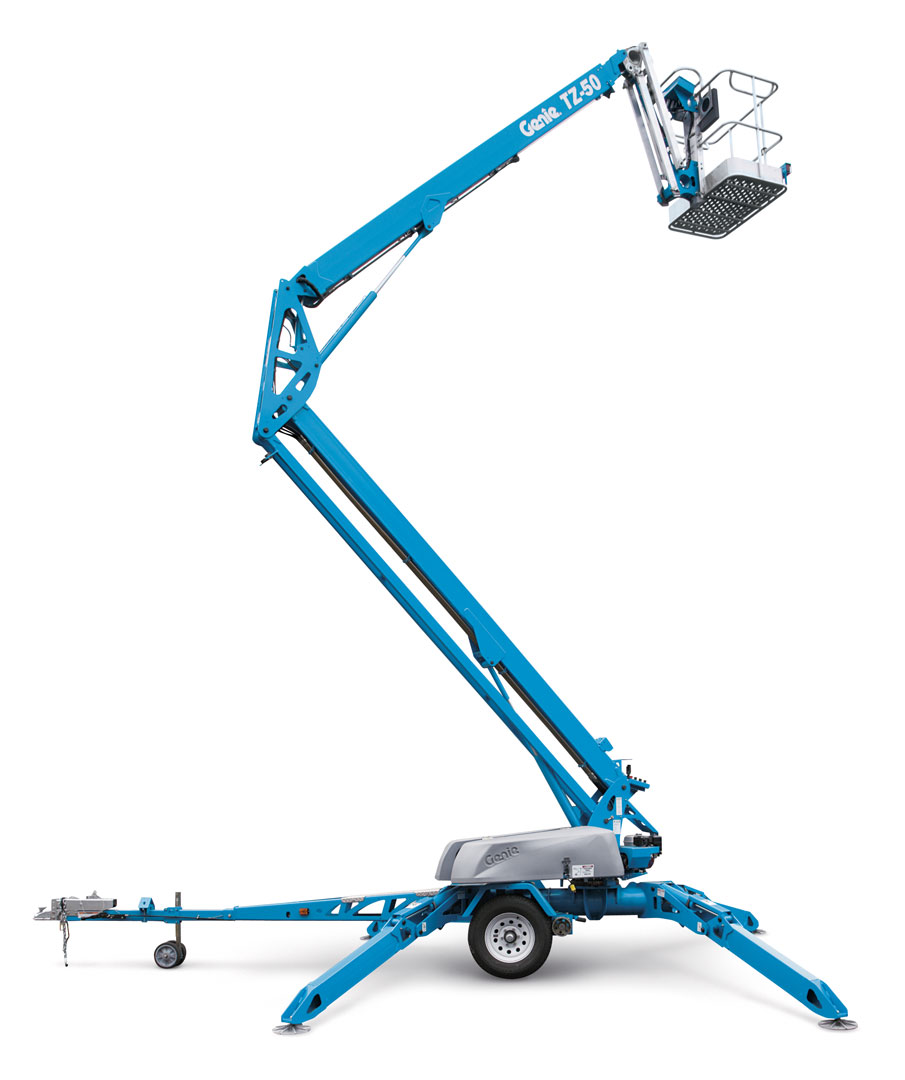

The TZ-50 DC trailer-mounted boom lift provides extended up, out and over access in a compact towable package. Designed for maintenance, construction and rental applications, it combines a 55 ft 6 in working height with 29 ft 2 in horizontal reach, hydraulic outriggers and intuitive controls for efficient positioning in congested work areas.
Product Information
| Product Type | Trailer-Mounted Boom Lift |
| Brand | Genie |
| Model | TZ-50 |
| Power | 24V DC (4 × 6V, 225Ah batteries) |
| Primary Use | Towable aerial access for construction, maintenance and facility applications |
Key Features
- 55 ft 6 in maximum working height with 29 ft 2 in horizontal reach.
- 500 lb platform capacity supports operators, tools and job materials.
- 359° non-continuous turntable rotation provides flexible positioning.
- Hydraulic outriggers with illuminated indicators support safe setup.
- Ground and platform controls use symbols to simplify operation.
- Optional Drive and Set capability allows repositioning from the platform when fully lowered.
Applications

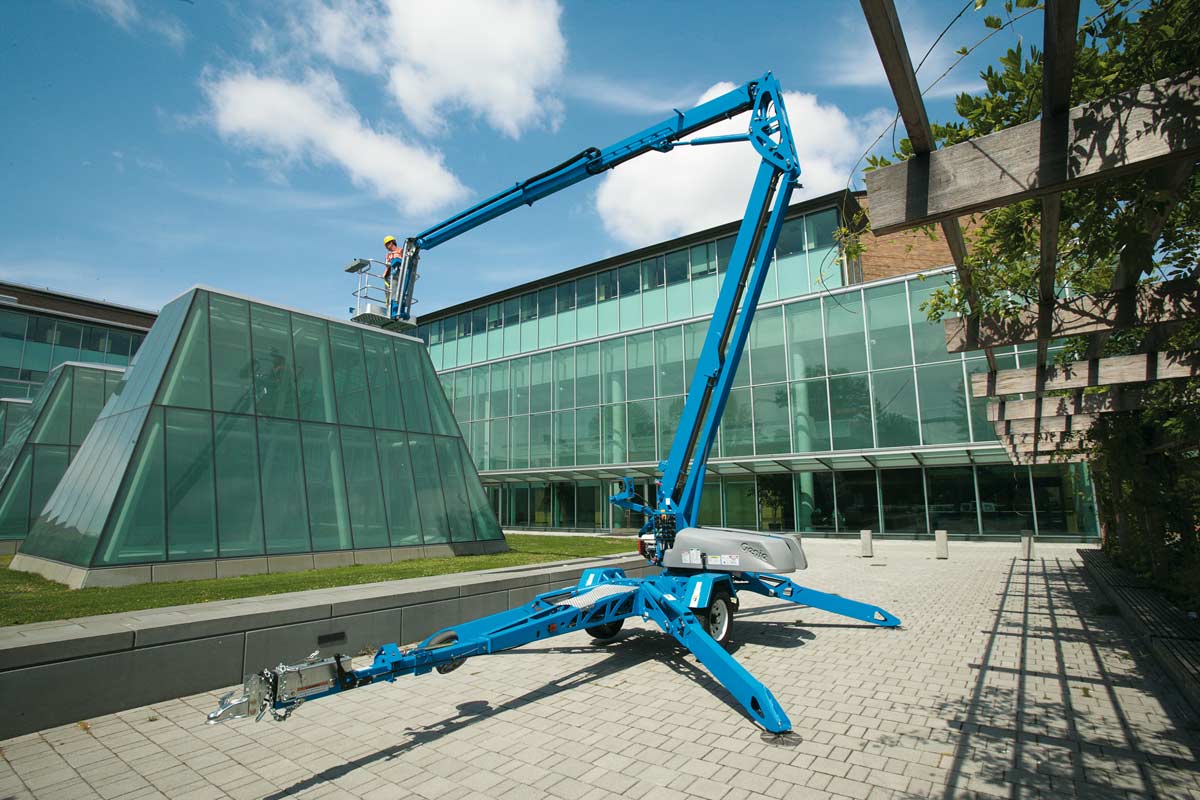

| Facility Maintenance | Exterior building maintenance, lighting, signage and overhead service. |
| Construction | Elevated installation and repair work requiring substantial horizontal reach. |

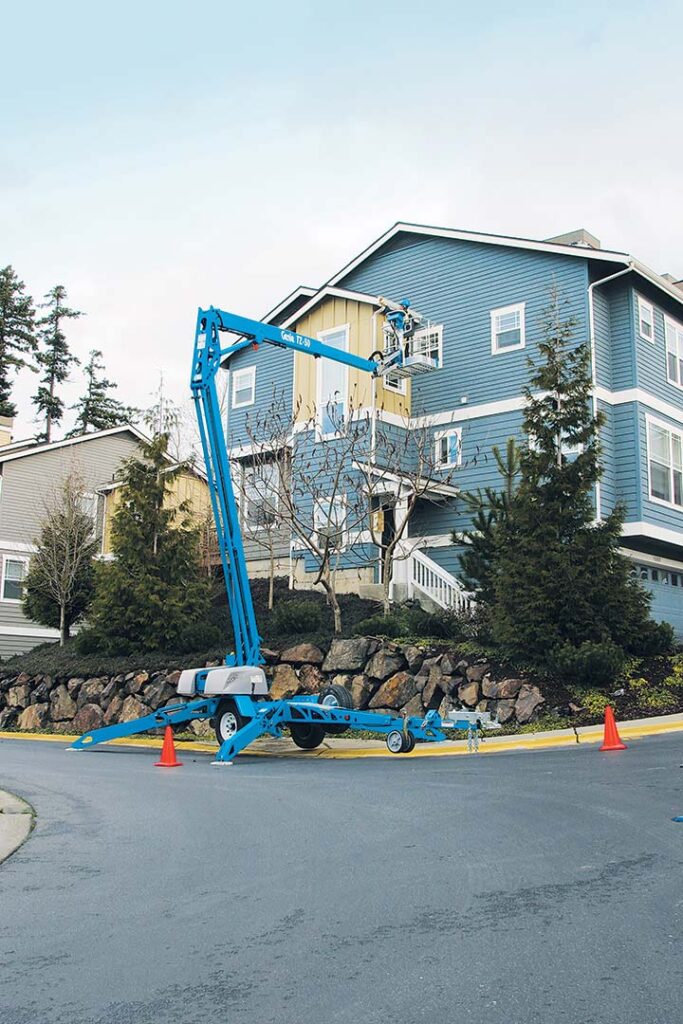

| Property and Grounds | Exterior maintenance and access around landscaped or congested areas. |
| Rental Fleets | High-reach towable boom option for contractors and maintenance customers. |
Specifications
| Maximum Working Height | 55 ft 6 in |
| Maximum Platform Height | 49 ft 6 in |
| Maximum Horizontal Reach | 29 ft 2 in |
| Clear Outreach | 23 ft 1 in |
| Maximum Up-and-Over Clearance | 22 ft |
| Platform Capacity | 500 lb |
| Rotating Platform Capacity | 500 lb |
| Platform Size | 26.8 in L × 44 in W |
| Platform Rotation | 160° hydraulic platform rotation available |
| Turntable Rotation | 359° non-continuous |
| Outrigger Leveling Capability | 11° outrigger leveling capability |
| Maximum Towing Speed | 60 mph |
| Tongue Weight | 400 lb |
| Tires | ST 225/75 R15 |
| Power Source | 24V DC (4 × 6V, 225Ah batteries) |
| Hydraulic Tank Capacity | 4.75 gal |
| Hydraulic System Capacity | 8.0 gal |
| Machine Weight | 4400 lb |
| Stowed Machine Dimensions | 282 in L × 66 in W × 82 in H |
| Standards | ANSI A92.20; CSA B354.6 |
Download Specs / Sheets
Product Summary
The TZ-50 is a professional trailer-mounted boom lift offering 55 ft 6 in working height, 29 ft 2 in horizontal reach and 500 lb platform capacity.
