Product Overview

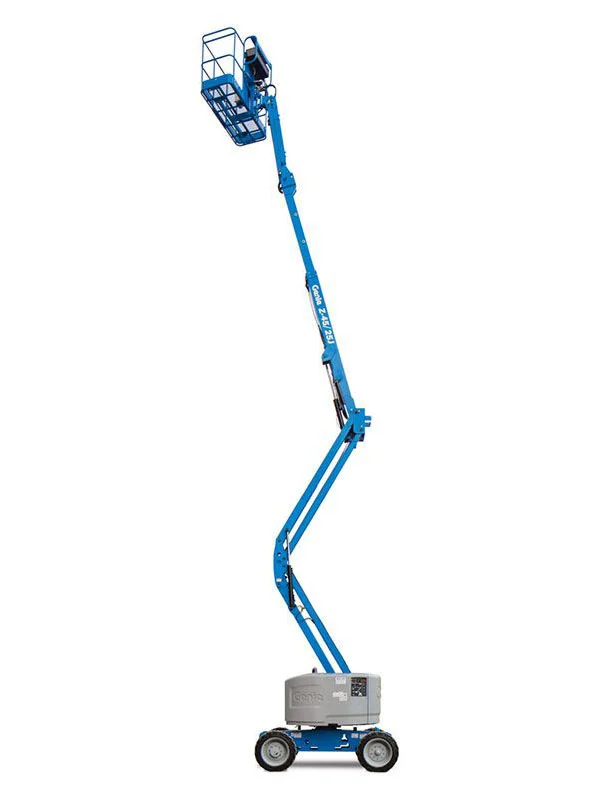

The Z-45/25J DC electric articulating boom lift provides quiet, emission-free elevated access for facility, industrial and commercial construction work. Its 5 ft jib, 25 ft 1 in horizontal reach and zero tailswing help operators position the platform around obstacles while working in congested areas.
Product Information
| Product Type | Articulating Boom Lift |
| Brand | Genie |
| Model | Z-45/25J DC |
| Drive | 2WD electric |
| Primary Use | Elevated access for construction, maintenance and industrial applications |
Key Features
- 48V DC electric power supports quiet, emission-free operation in sensitive environments.
- 25 ft 1 in maximum horizontal reach provides useful outreach around facility obstacles.
- 5 ft articulating jib with 135° vertical rotation supports precise platform positioning.
- Zero tailswing helps the machine work close to walls, equipment and structures.
- 30% gradeability provides practical drive performance for jobsite access.
- Solid non-marking tires suit indoor and finished-floor work.
Applications
| Facility Maintenance | Overhead building service, lighting, HVAC and repair work. |
| Industrial | Plant maintenance and production-area elevated access. |
| Commercial Construction | Interior and exterior electrical, mechanical and installation work. |
| Warehousing | High-bay, racking and overhead service applications. |
Specifications
| Maximum Working Height | 51 ft 9 in |
| Maximum Platform Height | 45 ft 9 in |
| Maximum Horizontal Reach | 25 ft 1 in |
| Maximum Up-and-Over Clearance | 23 ft 9 in |
| Platform Capacity | 500 lb |
| Platform Size | 2 ft 6 in L × 6 ft W |
| Platform Rotation | 160° |
| Jib | 5 ft articulating jib with 135° vertical rotation |
| Turntable Rotation | 355° |
| Tailswing | Zero tailswing |
| Drive Speed | 3.0 mph stowed / 0.61 mph raised |
| Gradeability – Stowed | 30% |
| Tires | 9 × 14.5 in solid non-marking |
| Power | 48V DC battery system (8 × 6V, 350Ah or 355Ah) |
| Machine Weight | 16315 lb |
| Stowed Machine Dimensions | 269 in L × 70.25 in W × 79 in H |
| Standards | ANSI A92.20; CSA B354.6 |
Download Specs / Sheets
Product Summary
The Z-45/25J DC provides 51 ft 9 in maximum working height with 500 lb platform capacity for professional aerial-access applications.
