Product Overview
The Sheet Metal/HVAC Pro 4090 Construction Math Calculator is designed for sheet metal workers, HVAC technicians, test and balance professionals, ductwork installers, contractors, and skilled trades professionals who need fast dimensional math, sheet metal layout, ductwork calculations, HVAC formulas, geometry, trigonometry, and construction-math solutions. Built for field and shop use, it helps simplify offsets, S-shaped bends, polar and rectangular coordinate conversions, fan law calculations, velocity, velocity pressure, areas, volumes, rafters, stairs, circles, columns, cones, and angle calculations.
Product Information
| Product Type |
Sheet Metal and HVAC Construction Math Calculator |
| Brand |
Calculated Industries |
| Model |
4090 |
| Calculator Type |
Advanced construction-math calculator for sheet metal and HVAC applications |
| Primary Users |
Sheet metal workers, HVAC technicians, ductwork installers, test and balance professionals, contractors, and skilled trades professionals |
| Use Case |
Sheet metal layout, HVAC calculations, ductwork offsets, S-shaped bends, polar/rectangular conversions, fan laws, velocity, velocity pressure, trig, geometry, and construction math |
Sheet Metal / HVAC Functions
| Sheet Metal Layout |
Includes sheet metal calculation functions for X, Y, radius, theta, and segment radius values. |
| Coordinate Conversion |
Converts between polar and rectangular coordinates for layout and ductwork calculations. |
| Offset Functions |
Solves S-shaped bends in ductwork, including wrapper length, centerline radius, and angle values. |
| Test and Balance |
Fan Law functions support CFM, RPM, static pressure, and brake horsepower calculations. |
| Velocity & Pressure |
Calculates velocity and velocity pressure values, including FPM, VP, MPS, and kPa. |
| ArcK Constant |
Includes ArcK constant support for convenient arc length calculations. |
| Trigonometry |
Includes sine, cosine, tangent, arcsine, arccosine, and arctangent functions for angles and layout work. |
| Non-90° Triangles |
Calculates non-90° triangle solutions for sheet metal and HVAC layout applications. |
Construction Math Functions
| Dimensional Math |
Works in and converts between building dimensional formats including feet, inches, fractions, and metric values. |
| Area & Volume |
Calculates instant areas and volumes for construction, sheet metal, and HVAC project measurements. |
| Square-Ups & Slopes |
Performs square-ups, slope calculations, and right-angle layout solutions. |
| Rafter Calculations |
Determines regular and irregular hip/valley rafter lengths plus plumb, level, and cheek cut angles. |
| Stair Layouts |
Performs complete stair layout calculations for construction and layout projects. |
| Circle & Cone Solutions |
Finds circle, column, cone surface area, and volume solutions. |
| D:M:S Conversions |
Converts degrees-minutes-seconds to decimal degrees for angle and layout calculations. |
Key Features
| Sheet Metal & HVAC Focus |
Designed for sheet metal workers and HVAC technicians who need layout, ductwork, TAB, and construction-math solutions. |
| Parenthesis Operators |
Allows complex formulas to be entered with familiar mathematical hierarchy and order of operations. |
| Advanced Math Functions |
Calculates square, cube, square root, and cube root values for technical math problems. |
| Memory Storage |
Stores frequently used constants or interim solutions for repeated calculations. |
| Memory Swap |
Allows stored values to be inserted into current calculations while storing and recalling calculated values. |
| User Preferences |
Allows users to set preferences for repeated calculation workflows. |
| Standard Calculator Functions |
Works as a regular calculator with standard math functions and backspace key for last-entry editing. |
| Jobsite Protection |

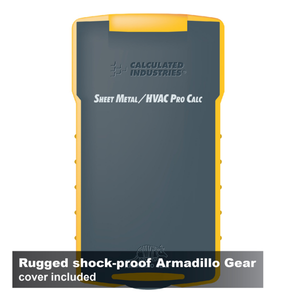

Includes a rugged shock, dust, and moisture-resistant Armadillo Gear case and protective slide cover. |
Applications
| Sheet Metal Layout |
Useful for sheet metal workers calculating layout values, offsets, bends, arcs, and coordinate conversions. |
| Ductwork Fabrication |
Helps solve S-shaped ductwork bends, wrapper length, centerline radius, bend angles, and duct layout problems. |
| HVAC Field Work |
Supports HVAC technicians with velocity, velocity pressure, TAB, and fan law calculations. |
| Test and Balance |
Practical for test and balance calculations involving CFM, RPM, static pressure, brake horsepower, FPM, VP, MPS, and kPa. |
| Construction Layout |
Useful for areas, volumes, square-ups, slopes, rafters, stairs, circles, columns, cones, and angle conversions. |
| Shop & Field Use |
Portable calculator for sheet metal shops, HVAC service vehicles, installation crews, fabrication work, and project planning. |
Specifications
| Dimensions |
5.6″ L x 3.0″ W x 0.5″ H |
| Metric Dimensions |
142 mm x 76 mm x 13 mm |
| Product Weight |
0.2 lbs / 3.2 oz / 91 g |
| Power |
Two 1.5-volt LR44 long-life batteries |
| Display Type |
LCD |
| Display Dimensions |
2.5″ L x 0.75″ W / 64 mm x 19 mm |
| Internal Accuracy |
12-digit internal accuracy |
| Warranty |
One-year limited warranty |

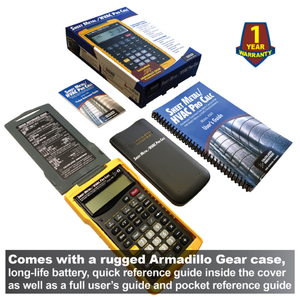

Included
| Protective Case |
Rugged shock, dust, and moisture-resistant Armadillo Gear case |
| Protective Cover |
Protective slide cover |
| User Guide |
Complete, easy-to-follow user guide |
| Reference Guide |
Quick reference guide |
| Batteries |
Two LR44 long-life batteries |
| Warranty |
One-year limited warranty |
Why Choose the Sheet Metal/HVAC Pro 4090?
The Sheet Metal/HVAC Pro 4090 gives sheet metal and HVAC professionals a compact calculator for ductwork layout, HVAC formulas, sheet metal offsets, S-shaped bends, TAB calculations, velocity, velocity pressure, trig, coordinate conversions, and construction math. It is a practical tool for improving speed, accuracy, and consistency in fabrication, installation, and field calculations.
