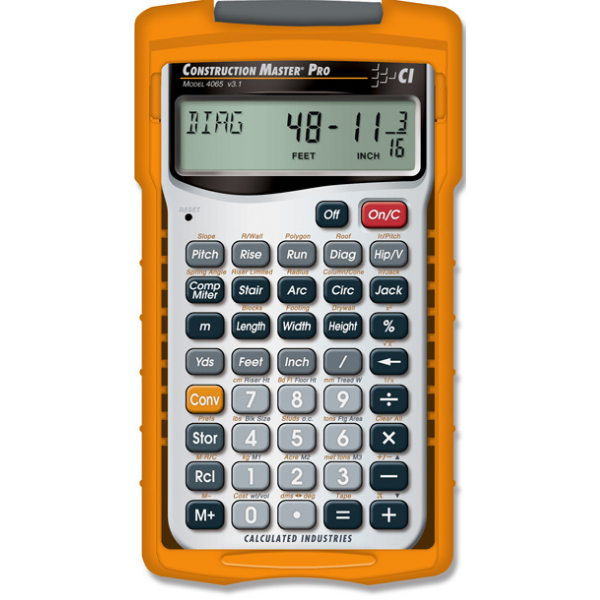

Product Overview
The Construction Master Pro 4065 Construction Calculator is an advanced feet-inch-fraction construction calculator designed for contractors, estimators, builders, carpenters, framers, architects, engineers, draftspersons, and trades professionals. Built for both field and office use, it helps simplify layouts, bids, estimates, stairs, roofing, rafters, framing, drywall, siding, material calculations, and dimensional conversions.
Product Information
| Product Type |
Construction Calculator |
| Brand |
Calculated Industries |
| Model |
4065 |
| Calculator Type |
Advanced feet-inch-fraction construction-math calculator |
| Primary Users |
Contractors, estimators, builders, carpenters, framers, architects, engineers, draftspersons, and trades professionals |
| Use Case |
Construction layout, estimating, roofing, framing, stairs, drywall, siding, and material calculations |
Construction Functions
| Dimensional Math |
Works in and converts between yards, feet-inch-fractions, decimal feet, decimal inches, and metric values. |
| Layout Calculations |
Includes right-angle solutions, square-ups, slopes, areas, volumes, perimeter, and length-width-height calculations. |
| Stair Layout |
Calculates risers, treads, stringer length, incline angle, riser height, and stairwell opening. |
| Roofing & Rafters |
Solves roof area, bundles, squares, sheathing, common rafters, hips, valleys, jacks, and cutting angles. |
| Drywall, Siding & Panels |
Calculates 4′ x 8′, 4′ x 9′, and 4′ x 12′ sheets needed to cover an area. |
| Framing & Studs |
Calculates on-center studs and rake-wall studs using entered spacing. |
| Specialty Calculations |
Includes circles, arcs, circumference, segments, columns, cones, pillars, windows, post-holes, polygons, blocks, footings, and board feet lumber estimating. |
| Compound Miter Cuts |
Stores crown angle and wall corner angle to calculate blade tilt and miter angle. |
Key Features
| Feet-Inch-Fraction Entry |
Designed for fast construction calculations using common building dimensions and fractional values. |
| Metric Conversion |
Works with metric values and converts between imperial and metric formats. |
| Paperless Tape |
Allows review of the last 20 entries to help double-check calculations. |
| Memory Functions |
Includes accumulating memory plus additional memory storage locations. |
| Standard Calculator Functions |
Works as a regular math calculator with basic arithmetic, percentage, pi, square, reciprocal, and square root functions. |
| Jobsite Protection |
Includes a rugged Armadillo Gear protective case designed to resist shock, dust, and moisture. |
| Battery Saving |
Automatic shut-off helps preserve battery life. |
Applications
| Estimating & Bidding |
Helps calculate materials, measurements, layouts, and project values for bids and estimates. |
| Jobsite Layout |
Useful for layout work, square-ups, slopes, right angles, and dimensional calculations in the field. |
| Roofing & Framing |
Supports roof area, rafter, hip, valley, jack, sheathing, and framing calculations. |
| Stair Planning |
Calculates stairs, risers, treads, stringers, incline angles, and stairwell openings. |
| Material Takeoffs |
Helps estimate drywall, siding, paneling, lumber, roof materials, blocks, footings, and other job materials. |
| Office Planning |
Works well for plan review, drafting, project planning, takeoffs, and contractor office use. |
Specifications
| Dimensions |
5.7″ L x 3.0″ W x 0.65″ H |
| Metric Dimensions |
145 mm x 76 mm x 17 mm |
| Product Weight |
0.2875 lbs / 4.6 oz / 130 g |
| Power |
Two 1.5V LR44/A76 batteries |

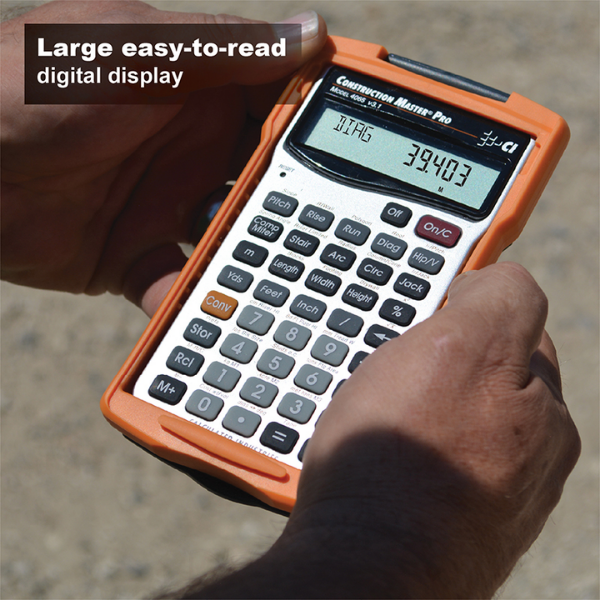

| Display Type |
11 digits, including 7 normal digits and 4 fraction digits |
| Display Dimensions |
0.625″ x 2.5″ / 16 mm x 63.5 mm |
| Internal Accuracy |
12-digit internal accuracy |
| Warranty |
One-year limited warranty |

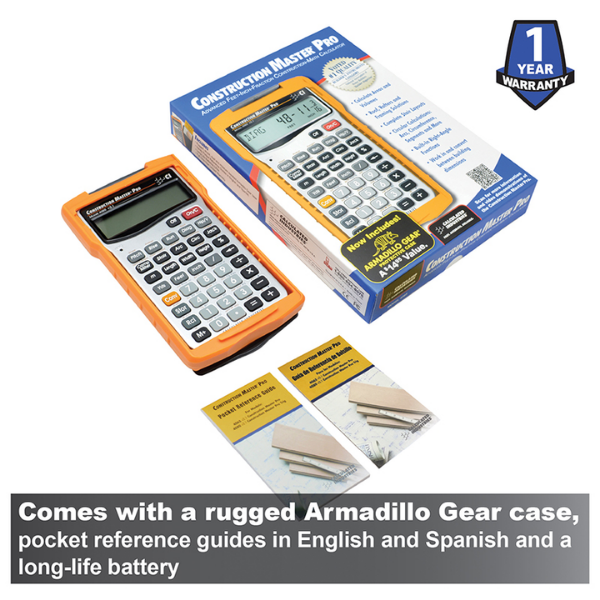

Included
| Protective Case |
Armadillo Gear protective case designed to resist shock, dust, and moisture |

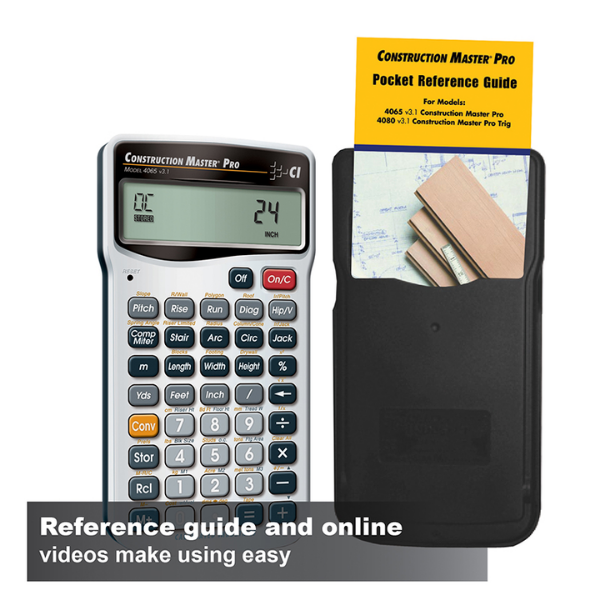

| Reference Guides |
Pocket reference guides in English and Spanish |
| Batteries |
Two LR44 long-life batteries |
Why Choose the Construction Master Pro 4065?
The Construction Master Pro 4065 gives construction professionals a compact, jobsite-ready calculator for common building math, layout work, estimating, stairs, roofing, framing, drywall, siding, and material takeoffs. Its built-in trade functions help reduce manual calculations, improve accuracy, and save time on projects.
Explore additional professional calculators and measuring tools from Calculated Industries.
