Product Overview

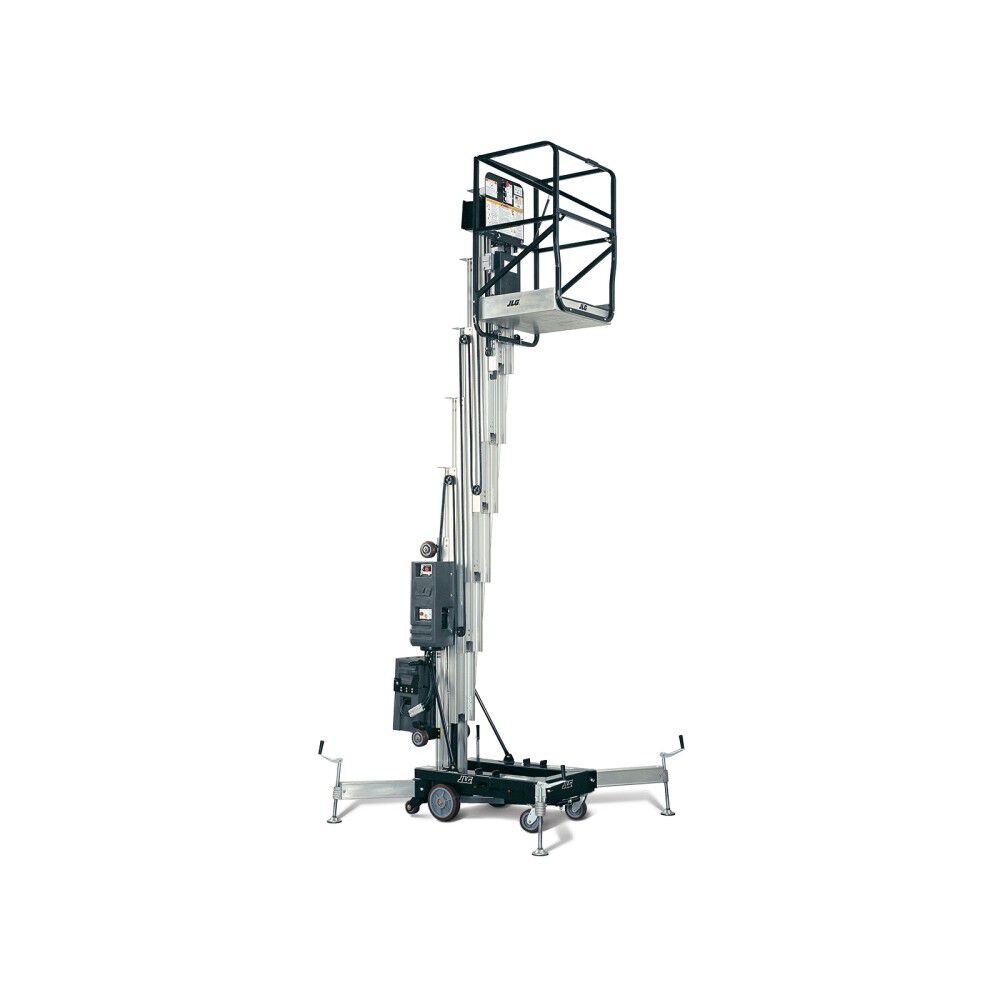

The 25AM-DC AccessMaster push-around vertical mast lift provides compact, battery-powered access for facility maintenance, inventory work, repairs and other overhead tasks. Its narrow chassis, six-wheel design and manually positioned base help operators move through standard doorways and tight aisles before setting the interlocked outriggers for elevated work.
Product Information
| Product Type | Push-Around Vertical Mast Lift |
| Brand | JLG |
| Model | 25AM-DC |
| Manufacturer Item Number | AD670027 |
| Series | AccessMaster AM Series |
| Primary Use | Indoor overhead maintenance, repair and inventory applications |
Key Features
- 31 ft maximum working height for indoor overhead maintenance and service work.
- 350 lb platform capacity supports an operator with tools and work materials.
- Six-wheel chassis improves maneuverability during manual positioning.
- Interlocked outriggers help establish a stable working base before elevation.
- 12V DC battery power and automatic charger support productive daily use.
- Non-marking tires suit commercial buildings, warehouses and finished-floor environments.
Applications
| Facility Maintenance | Lighting, electrical, HVAC and routine overhead service. |
| Warehousing | Inventory management, rack-area tasks and overhead maintenance. |
| Commercial Buildings | General repair and installation work in narrow indoor spaces. |
| Institutional Use | Schools, venues and public facilities requiring portable vertical access. |
Specifications
| Working Height | 31 ft |
| Platform Height | 24 ft 10 in |
| Maximum Platform Capacity | 350 lb |
| Platform Size | 26 × 26 in |
| Machine Length | 49 in |
| Machine Width | 29 in |
| Stowed Machine Height | 77.3 in |
| Machine Weight – DC | 905 lb |
| Outrigger Footprint | 68 × 62 in |
| Ground Entry Height | 19 in |
| Power | 12V DC, AGM battery |
| Front Casters | 6 × 2 in |
| Rear Wheels | 10 × 2 in |
| Mobility | Manual push-around |
Download Specs / Sheets
Product Summary
The 25AM-DC is a compact push-around vertical mast lift designed to provide portable, stable access for maintenance and overhead work on firm, level surfaces.
