Product Overview

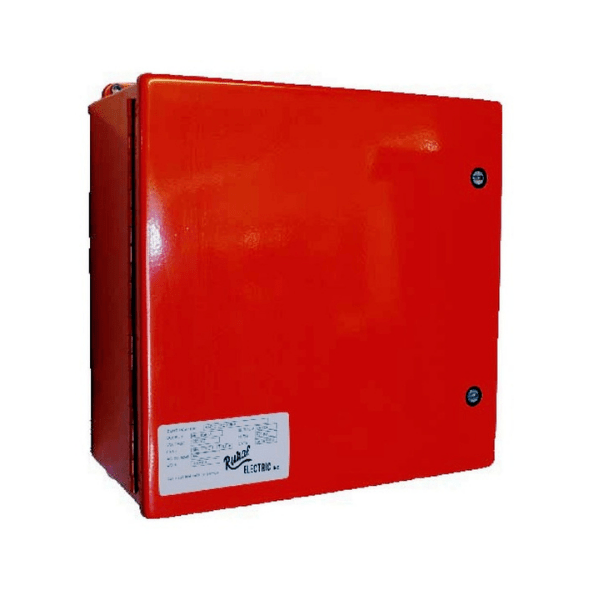

Pilot-controlled airfield lighting receiver/decoder for direct air-to-ground lighting activation. The HaliBrite L-854 allows pilots to operate airfield lighting by keying the aircraft microphone, helping smaller and remote airfields provide lighting when it is needed without continuous nighttime operation.
Product Information
| Manufacturer / FAA Type | L-854 |
| Referenced Receiver Part # | RDL8541A |
| Unit of Sale | One radio receiver/decoder system |
| Frequency Range | Approx. 118-137 MHz air band |
| Pilot Control | 3, 5 or 7 microphone clicks |
| Control Outputs | Two configurable 3-5-7 output banks |
| Application | Pilot-controlled runway and airfield lighting systems |
| FAA Equipment Type | L-854 Radio Control Equipment |
Key Features
- Pilot-controlled 3-5-7 microphone-click activation.
- Two independently configurable banks of 3-5-7 control outputs.
- Selectable sequential or cumulative operating modes.
- Configurable output-voltage control and two independent control-voltage inputs.
- Optical isolation helps protect connected control equipment.
- Selectable air-band frequency range around 118-137 MHz.
- High receiver sensitivity and strong adjacent-channel selectivity.
- Retractable mounting brackets simplify installation.
Applications
- Commercial, municipal and private aviation facilities
- Airport and airfield lighting systems
- New installations, upgrades and replacement projects
Product Documents
Product Summary
Pilot-controlled airfield lighting receiver/decoder for direct air-to-ground lighting activation. The HaliBrite L-854 allows pilots to operate airfield lighting by keying the aircraft microphone, helping smaller and remote airfields provide lighting when it is needed without continuous nighttime operation.
