Product Overview

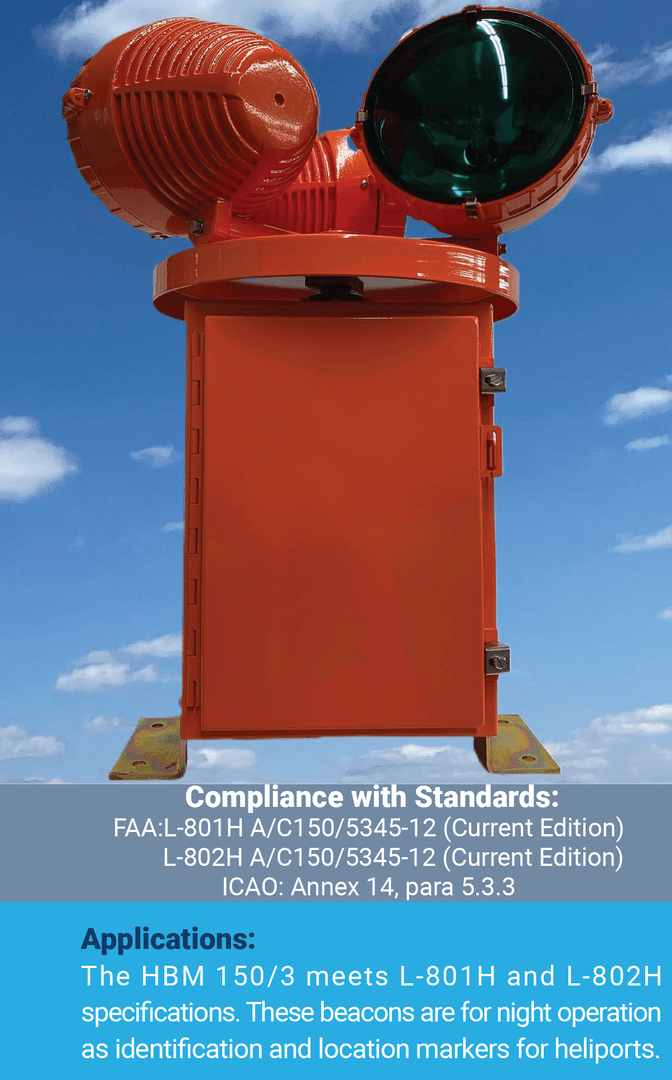

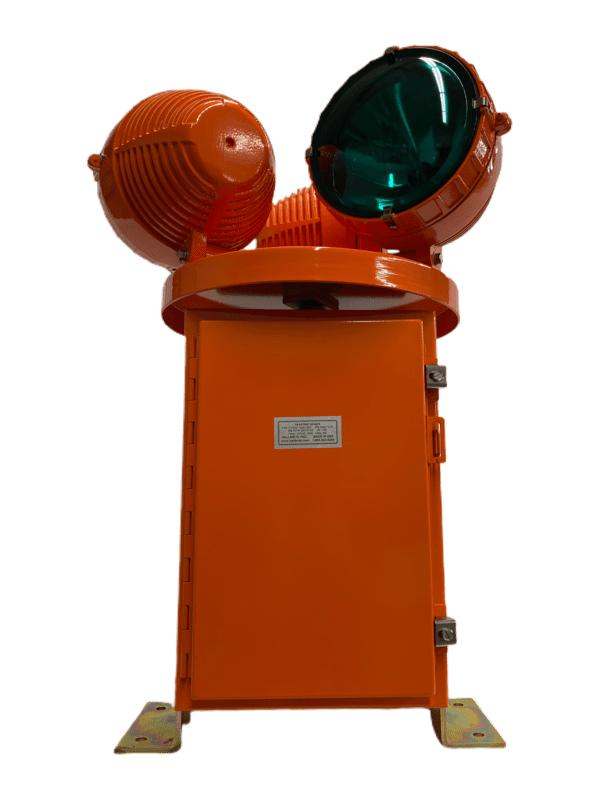

Three-lamp metal-halide rotating beacon for heliport identification and location marking. The HBM 150/3 meets L-801H and L-802H applications and uses clear, aviation-green and yellow lenses with a low-maintenance belt-drive mechanism.
Product Information
| Existing WooCommerce SKU | L-801H L-802H HBM 150/3 |
| Manufacturer Product Family | HBM 150/3 |
| Unit of Sale | One configured heliport rotating beacon |
| Compliance | FAA L-801H/L-802H / ICAO |
| Class I Power | 595 W |
| Class II Power | 995 W |
| Unpackaged Weight | 96 lb |
| Shipping Weight | 124 lb |
| Shipping Dimensions | 48″ x 28″ x 25″ |
| Ordering Family | L801H7116 / L801H7126 / L801H7216 / L801H7226 plus hospital and military variants |
Key Features
- FAA ETL certified and ICAO compliant.
- Three 14,000-lumen, 150-watt metal-halide lamps.
- Clear, aviation-green and yellow lenses.
- 12 RPM rotation producing 36 flashes per minute.
- Tested to wind velocities of 100 mph.
- Hospital and military heliport configurations are available.
- Class I and heated Class II versions available.
Applications
- Airport, heliport or vertiport identification and location marking
- Nighttime aviation operations
- New installations, replacement projects and airfield lighting upgrades
Product Documents
Product Summary
Three-lamp metal-halide rotating beacon for heliport identification and location marking. The HBM 150/3 meets L-801H and L-802H applications and uses clear, aviation-green and yellow lenses with a low-maintenance belt-drive mechanism.
