Product Overview

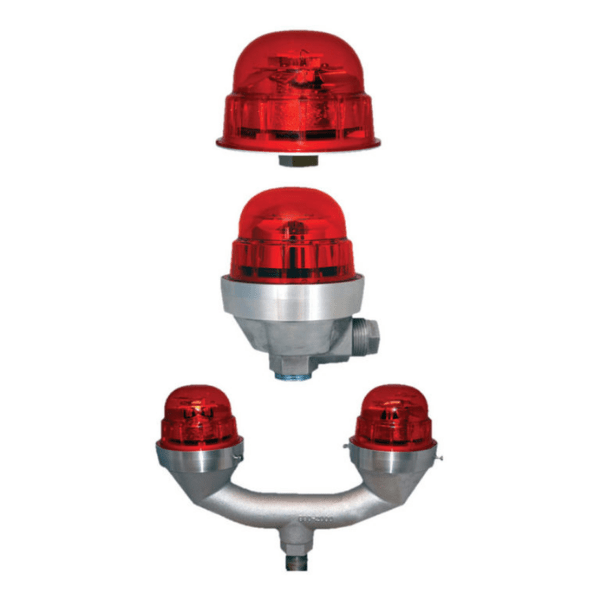

Low-intensity red LED obstruction lighting for structures that may present hazards to aircraft. The HaliBrite L-810 family is available in single- and dual-head configurations and provides 360-degree red visibility for towers, buildings and other elevated obstructions.
Product Information
| Manufacturer / FAA Type | L-810 |
| Unit of Sale | One obstruction-light assembly |
| Configurations | Single or dual |
| Light Color | Aviation red |
| Coverage | 360 degrees per flash head |
| Input | 120-240 VAC, 50/60 Hz; DC models available |
| Power Consumption | 1.5W nominal DC / 6.5W nominal AC for standard units |
| Ingress Protection | IP66 |
| Single-Unit Reference Size | Approx. 4.62″ diameter x 5.93″ H |
| Single-Unit Reference Weight | 2.00 lb |
| Dual-Unit Reference Weight | 4.60 lb |
Key Features
- Single- and dual-head configurations are available.
- Red glass Fresnel lens provides 360-degree visibility.
- 120 or 240 VAC input at 50/60 Hz, with DC versions also available.
- IP66 enclosure protection and shock/vibration-resistant construction.
- Steady-burning operation with optional flashing through an external flasher.
- LED lamp life is rated at approximately 100,000 hours.
- Manufacturer provides a 5-year warranty.
Applications
- Commercial, municipal and private aviation facilities
- Airport and airfield lighting systems
- New installations, upgrades and replacement projects
Product Documents
Product Summary
Low-intensity red LED obstruction lighting for structures that may present hazards to aircraft. The HaliBrite L-810 family is available in single- and dual-head configurations and provides 360-degree red visibility for towers, buildings and other elevated obstructions.
Explore additional products from HaliBrite.
