Product Overview

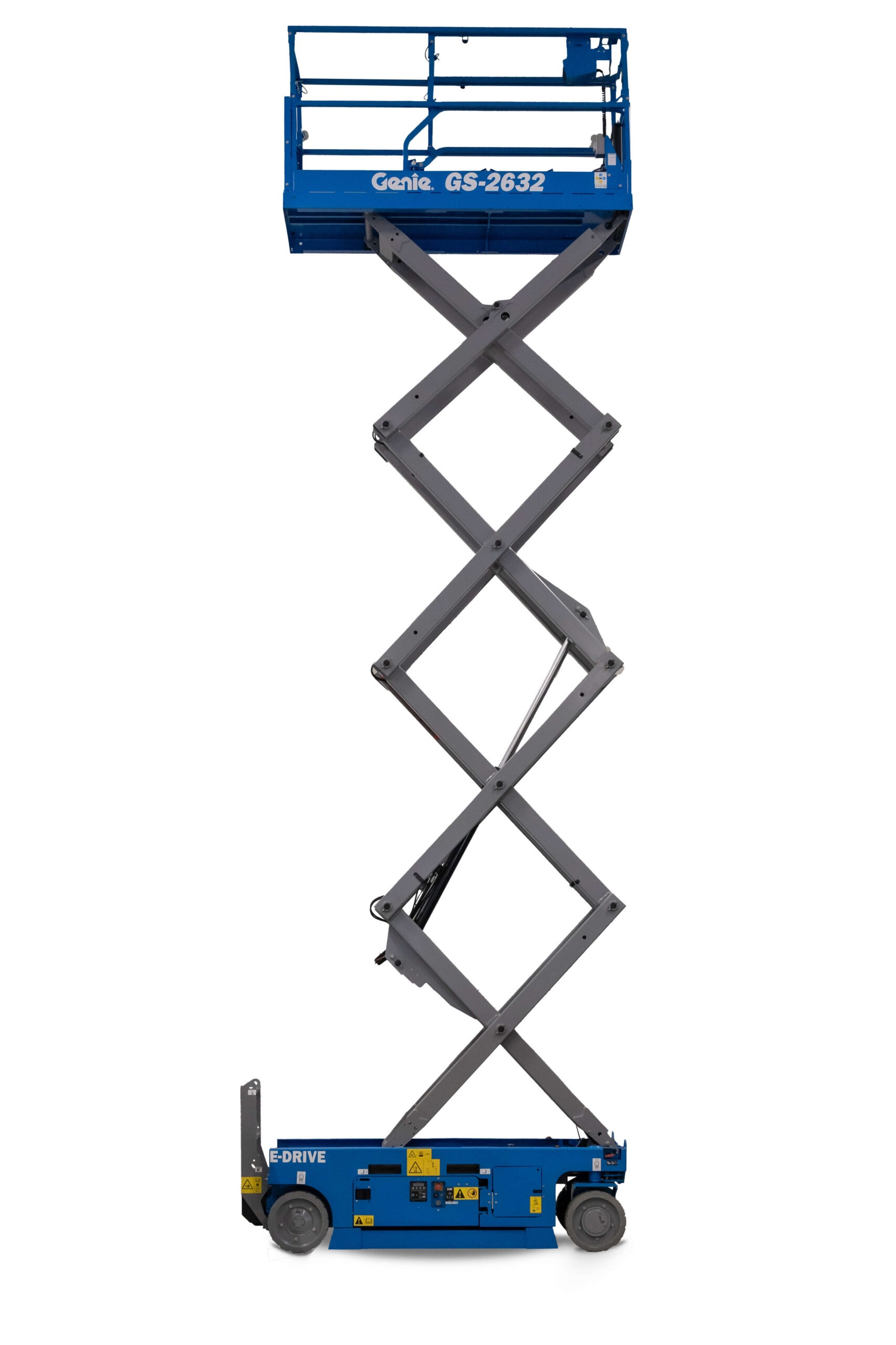

The GS-2632 E-Drive electric slab scissor lift provides a 32 ft 1 in maximum indoor working height while retaining a narrow 32-inch-class machine width. It is designed for indoor and outdoor construction, maintenance and installation work on firm, level surfaces, with electric drive and maneuverability suited to commercial and industrial jobsites.
Product Information
| Product Type | Electric Slab Scissor Lift |
| Brand | Genie |
| Model | GS-2632 E-Drive |
| Drive System | AC electric E-Drive |
| Primary Use | Indoor and outdoor aerial access on firm, level surfaces |
Key Features
- Genie AC E-Drive configuration supports productive runtime and reduced drive-system maintenance.
- 32-inch-class width helps the machine work in tighter aisles and access areas.
- 36 in roll-out platform extension increases usable workspace.
- Smart Link dual-zone controls support indoor and outdoor operation.
- Swing-out component trays improve access for service and inspection.
- Solid non-marking tires and pothole protection support slab and finished-floor applications.
Applications
| Commercial Construction | Overhead installation, electrical, mechanical and finishing work. |
| Industrial Maintenance | Facility service, production-area maintenance and equipment access. |
| Warehousing | High-bay maintenance, lighting, racking and overhead utility work. |
Specifications
| Maximum Working Height – Indoor | 32 ft 1 in |
| Maximum Working Height – Outdoor | 25 ft |
| Maximum Platform Height – Indoor | 26 ft 1 in |
| Platform Capacity | 500 lb |
| Extension Deck Capacity | 250 lb |
| Platform Extension | 36 in |
| Maximum Platform Occupancy | 2 indoor / 1 outdoor |
| Gradeability – Stowed | 25% |
| Drive Speed | 2.0 mph stowed / 0.5 mph raised |
| Power | 24V DC; flooded lead-acid standard, lithium-ion configuration available |
| Tires | 15 × 5 in solid non-marking |
| Machine Weight | 4729 lb |
| Stowed Machine Dimensions | 96 in L × 32.2 in W × 91 in H |
| Standards | ANSI A92.20; CSA B354.6 |
Download Specs / Sheets
Product Summary
The GS-2632 E-Drive is a compact electric scissor lift for customers who need reliable elevated access, jobsite maneuverability and a 500 lb platform capacity.
Explore additional aerial lift and work platform solutions from Genie.
