Product Overview

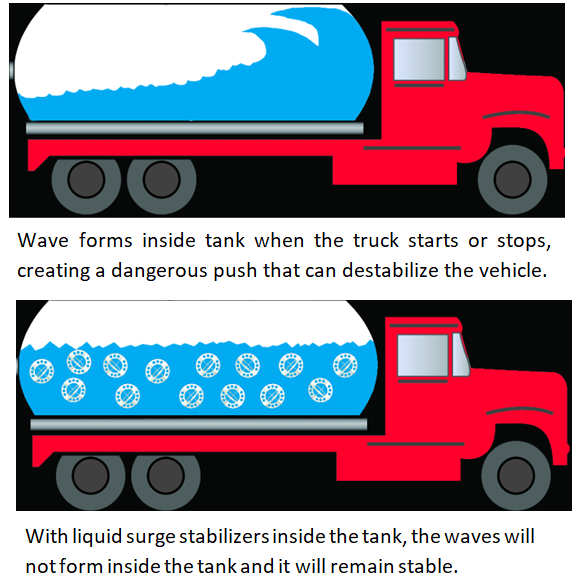

The Liquid Surge Stabilizer Tank Baffle Box Set is designed to reduce the back-and-forth movement of liquid cargo inside partially loaded tanks. By interrupting the wave that forms during acceleration, braking, and lane changes, the system helps improve vehicle handling and reduce stress on the tank.
Key Features

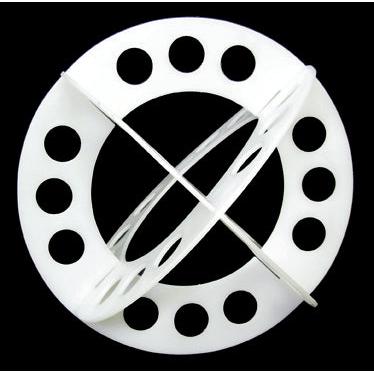

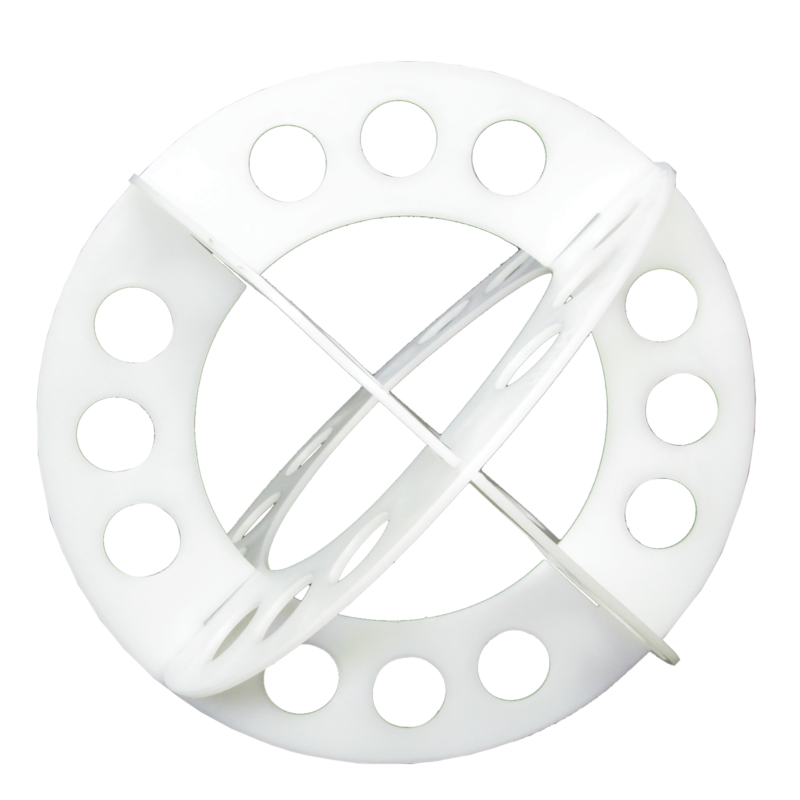

- Box set assembles into 28 liquid surge stabilizer baffles.

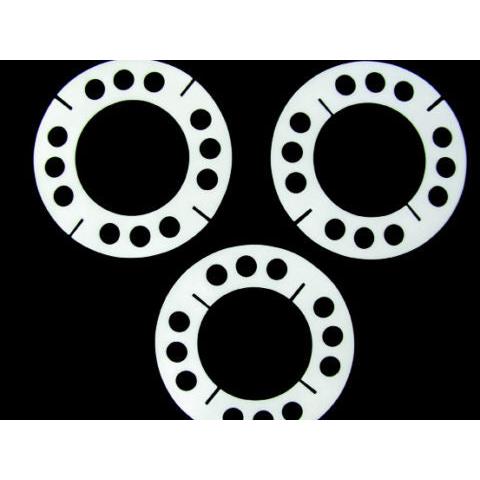

- Each baffle consists of three high-strength plastic interlocking rings.
- Twelve flow-restriction ports per ring provide 36 ports per assembled baffle.
- Rings lock together without fasteners or tools.
- No attachment to the tank is required.
- System packs flat for more efficient storage and shipping.
Applications
- Government and municipal liquid-transport vehicles
- DOT irrigation and anti-icing equipment
- Landscape, lawn-care, and arborist tanks
- Agricultural and custom-spraying equipment
- Rural fire-department and nurse tanks
Technical Specifications
| Manufacturer SKU | LSS1575BOXSET |
| Selling Unit | Box set of 28 baffles |
| Baffle Construction | Three interlocking high-strength plastic rings |
| Flow-Restriction Ports | 36 per assembled baffle |

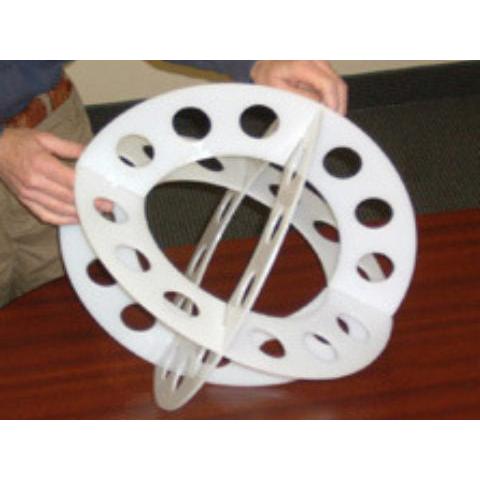

| Assembled Baffle Width | 15.5 inches |
| Minimum Manway Size | 16 inches |
| Compatible Tank Materials | Metal, poly, and fiberglass |
| Shipping Weight | 55 lb |
Important Compatibility Information
Designed for tanks with or without fixed baffles or compartments. Not recommended for flammable or food-grade liquids.
Download Specs / Sheets
Product Summary
A tool-free, drop-in baffle system that helps stabilize liquid cargo in compatible partially loaded transport tanks.
Explore additional tank baffle and surge-control solutions from Plasticade.
